In the ever-evolving landscape of DevOps, Continuous Deployment (CD) has become a cornerstone of efficient and reliable software delivery. ArgoCD, a declarative, GitOps continuous delivery tool for Kubernetes, is a powerful ally in this domain. However, managing access and ensuring security can be a challenge. Integrating ArgoCD with Microsoft Azure Active Directory (AD) simplifies authentication and enhances security by leveraging existing Azure AD credentials.

Why Integrate ArgoCD with Azure AD?

• Unified Authentication: Leverage existing Azure AD credentials for ArgoCD access.
• Enhanced Security: Utilize Azure AD’s robust security features such as Multi-Factor Authentication (MFA).
• Simplified User Management: Centralize user management in Azure AD, reducing the need to manage separate credentials.
• Scalability: Easily manage access for large teams and organizations.

Prerequisites:

Before integrating ArgoCD with Azure AD, ensure you have the following:

• An Azure AD tenant.
• Administrative access to your Azure AD tenant.
• An ArgoCD instance running in your Kubernetes cluster.
• Admin access to your Kubernetes cluster.

Step-by-Step Guide to Integrate ArgoCD with Azure:

1. Configure a new Entra ID Enterprise App

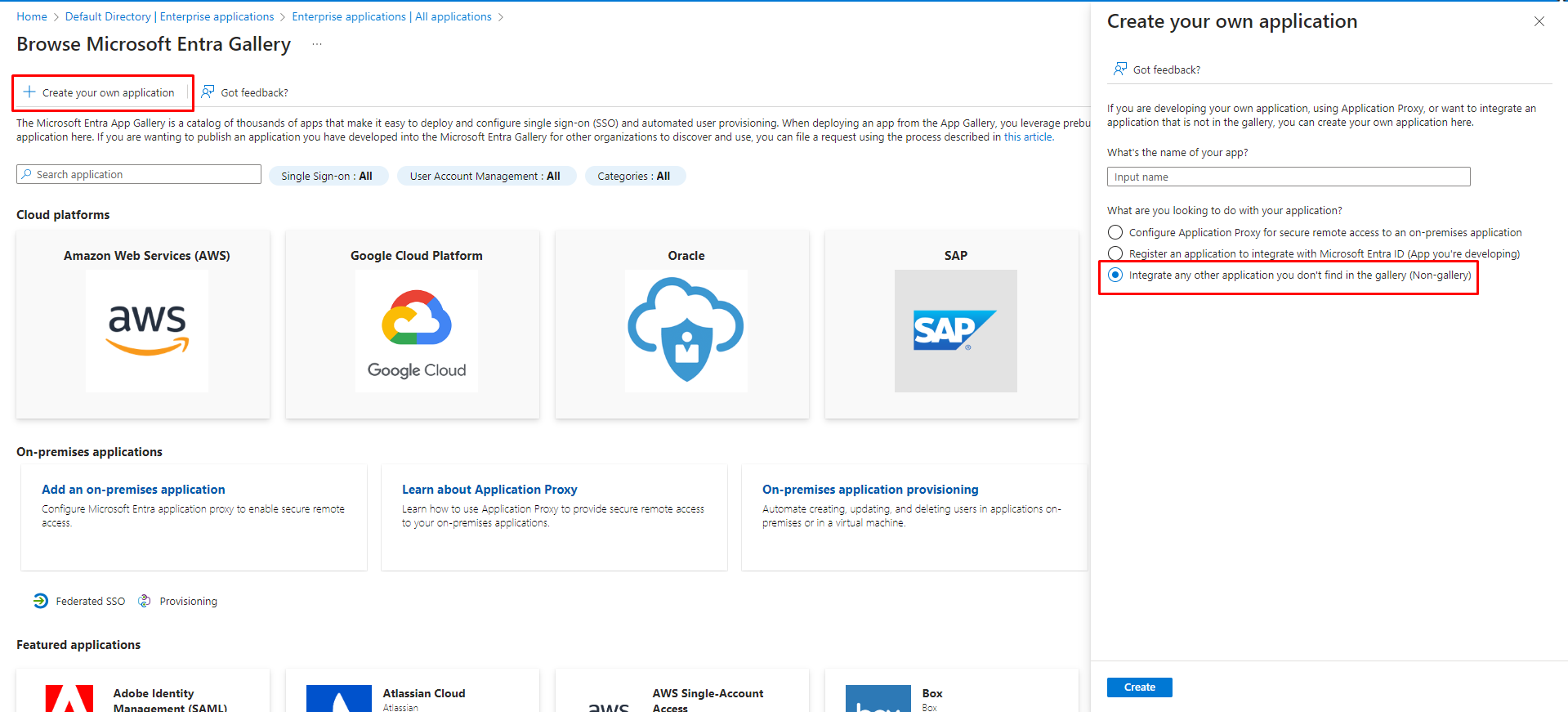

• From the Microsoft Entra ID > Enterprise applications menu, choose + New application.
• Enter a Name for the application (e.g. Argo CD), then choose Create.

2. Create a new group from your Main Directory:

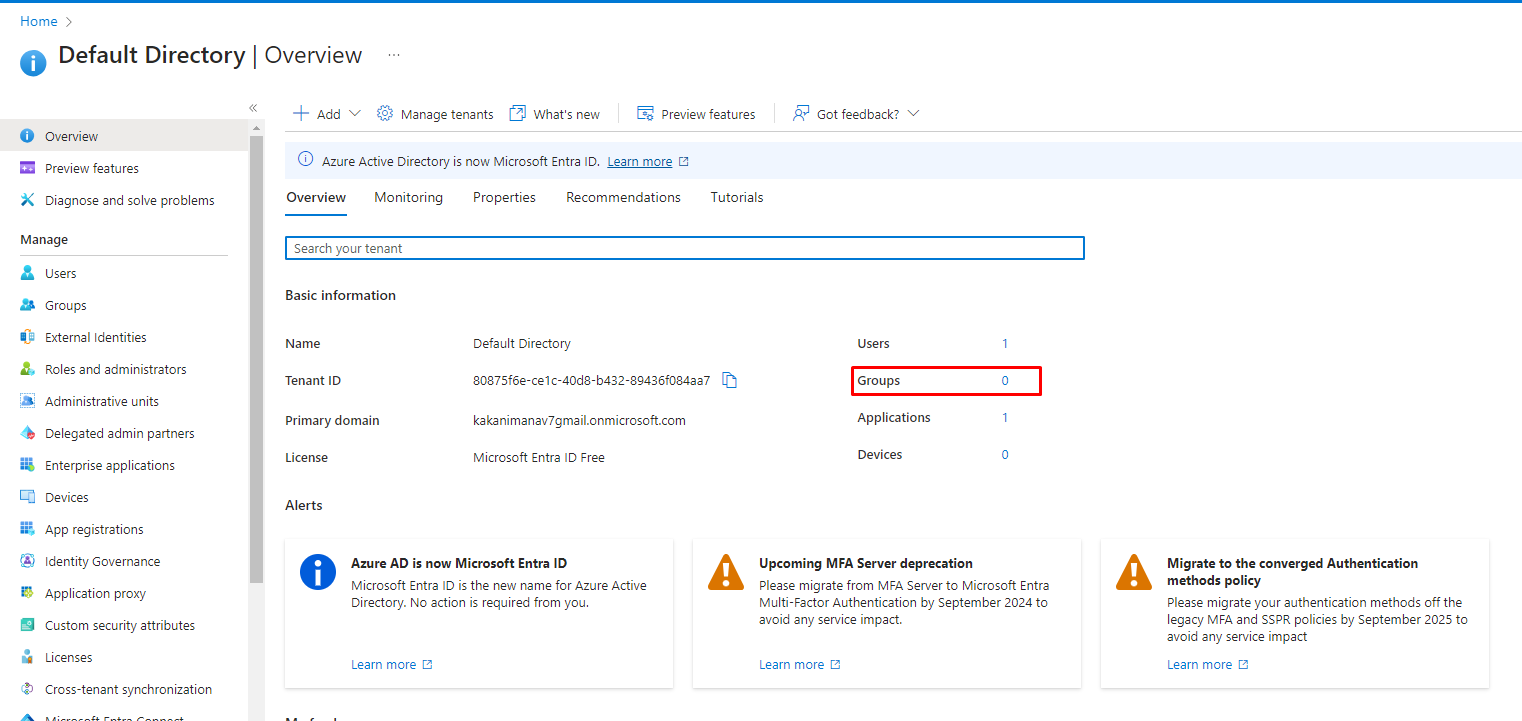

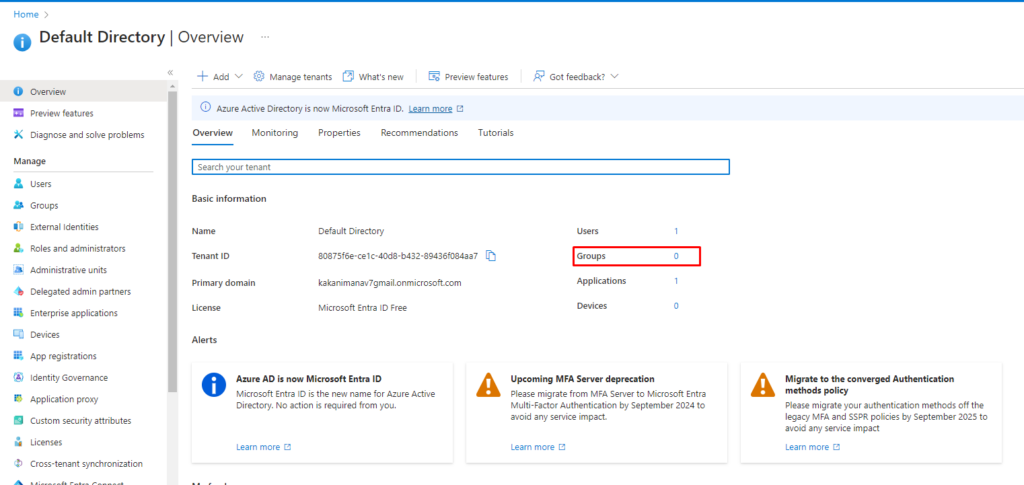

• Click on groups as shown below

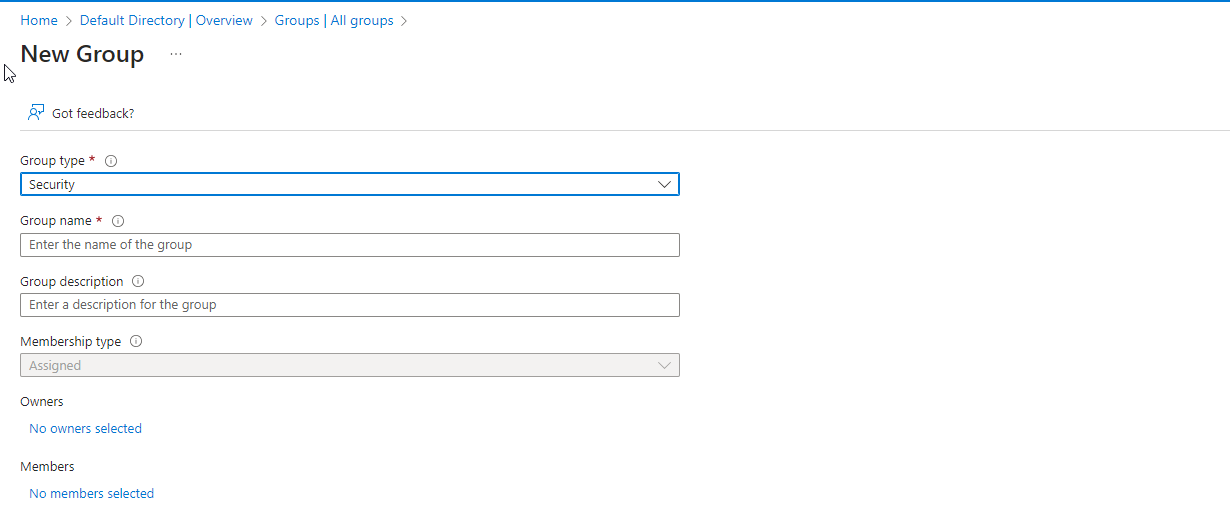

• Create a new group with Security Type.

3. Add this group or users to the new created users

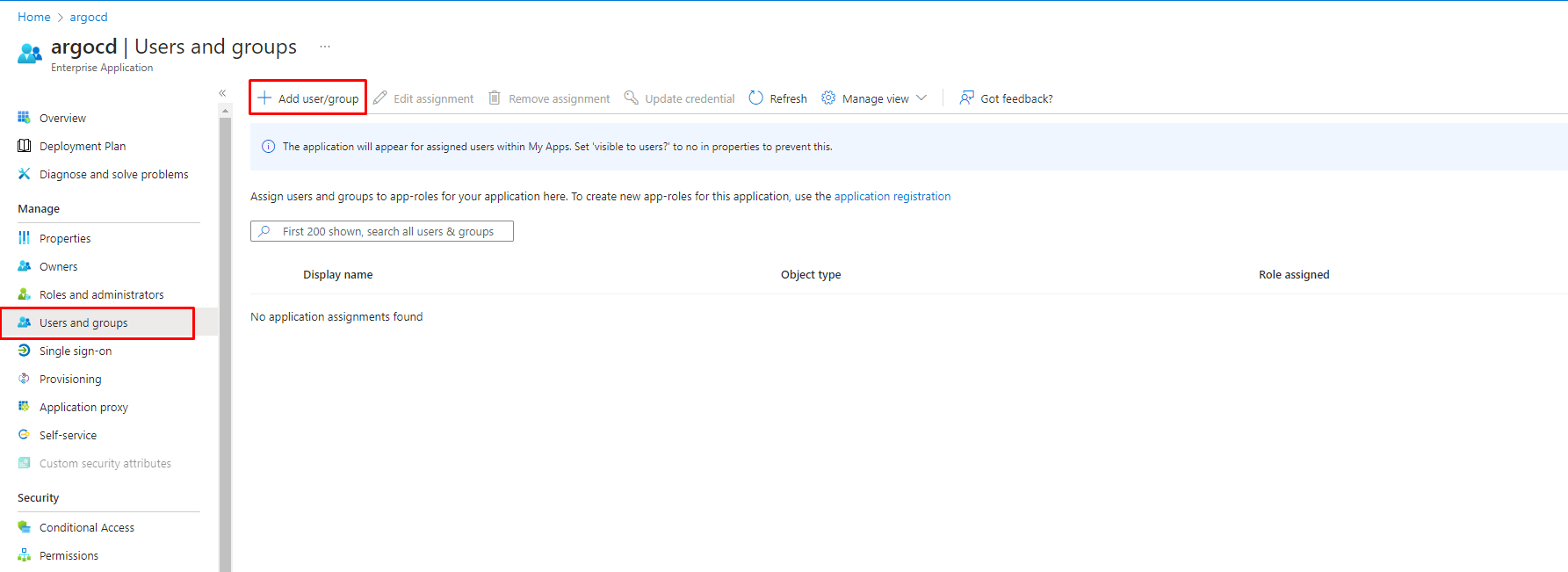

• For this go to your app and choose the option Users and groups and click on Add groups/users:

• Then select the group or users you have to give access to this Application.

4. Configure the SAML Login

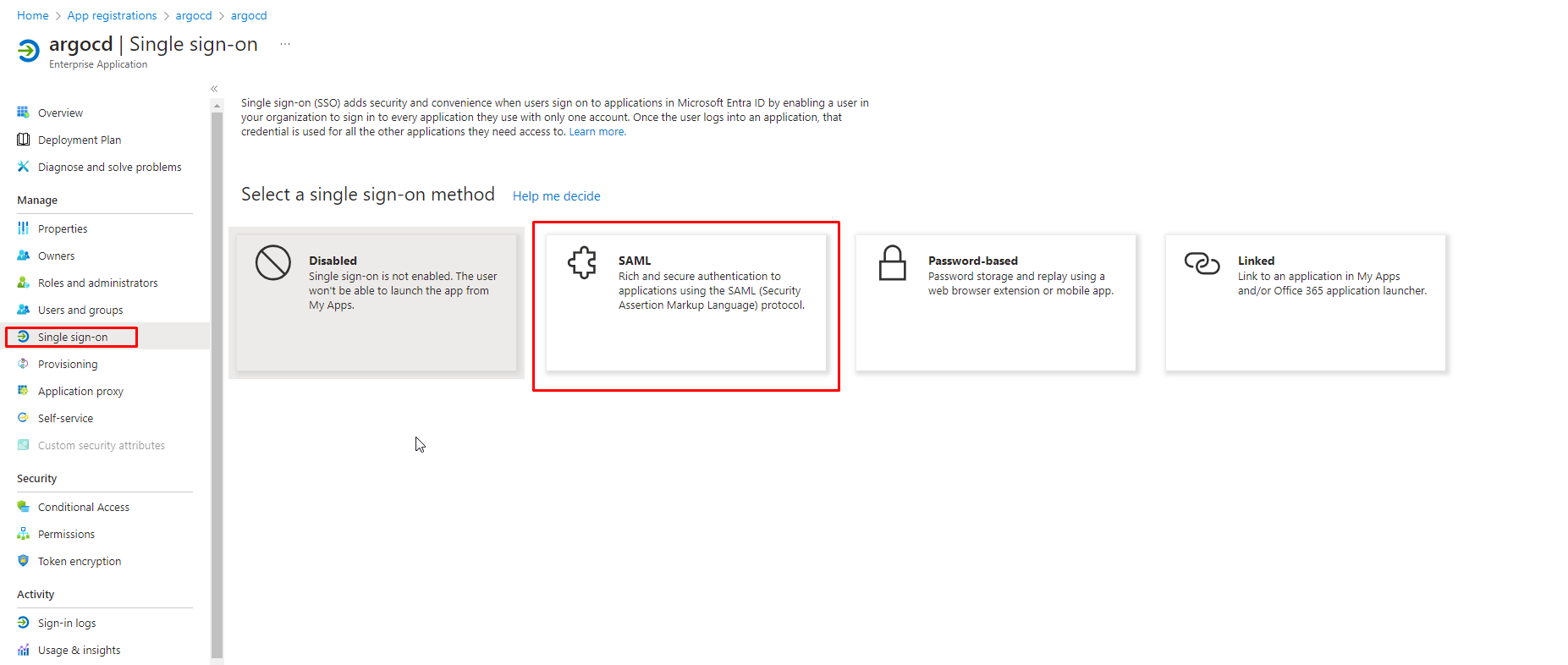

• To configure the saml login go to the option Single sign-on and select the SAML option:

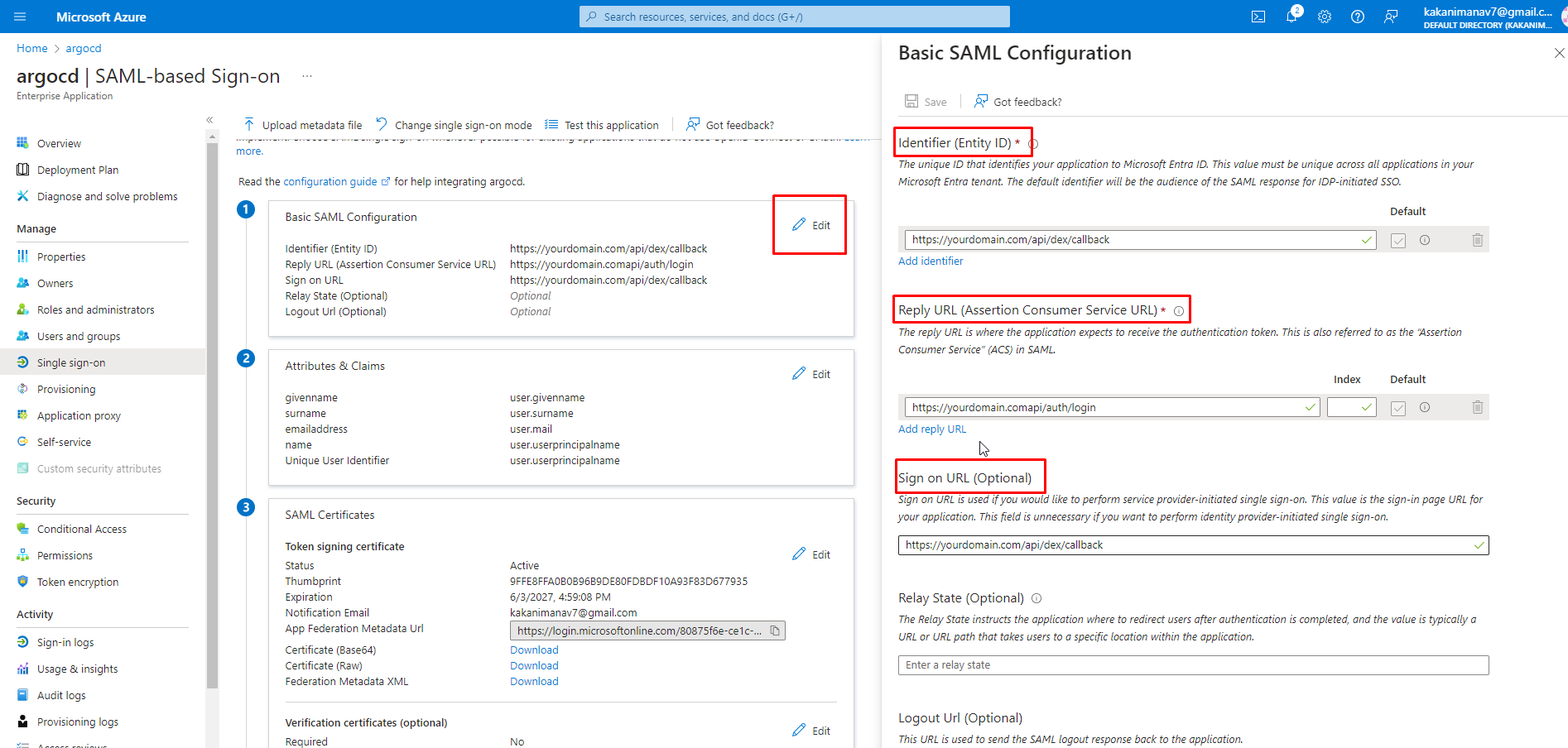

• After this From the Single sign-on menu, edit the Basic SAML Configuration section as follows:

• Identifier (Entity ID): https://your-argo-cd-url/api/dex/callback
• Reply URL (Assertion Consumer Service URL): https://your-argo-cd-url/api/dex/callback
• Sign on URL: https://your-argo-cd-url/auth/login
• Relay State: empty
• Logout Url: empty

• Now edit the User attributes & claims and create the following claims:

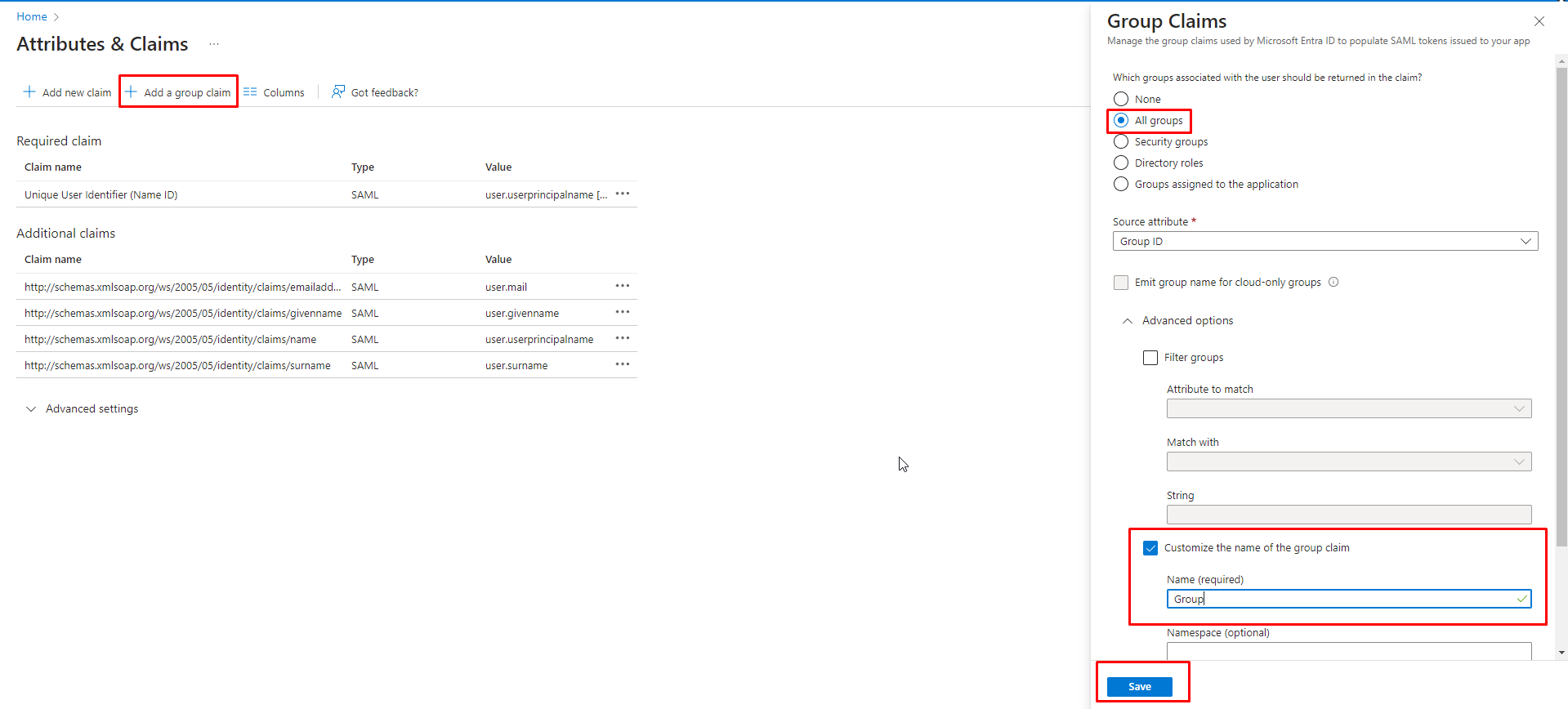

• Select Add group claim and configure as follow:
• Which groups: All groups | Source attribute: Group ID | Customize: True | Name: Group | Namespace: | Emit groups as role claims: False

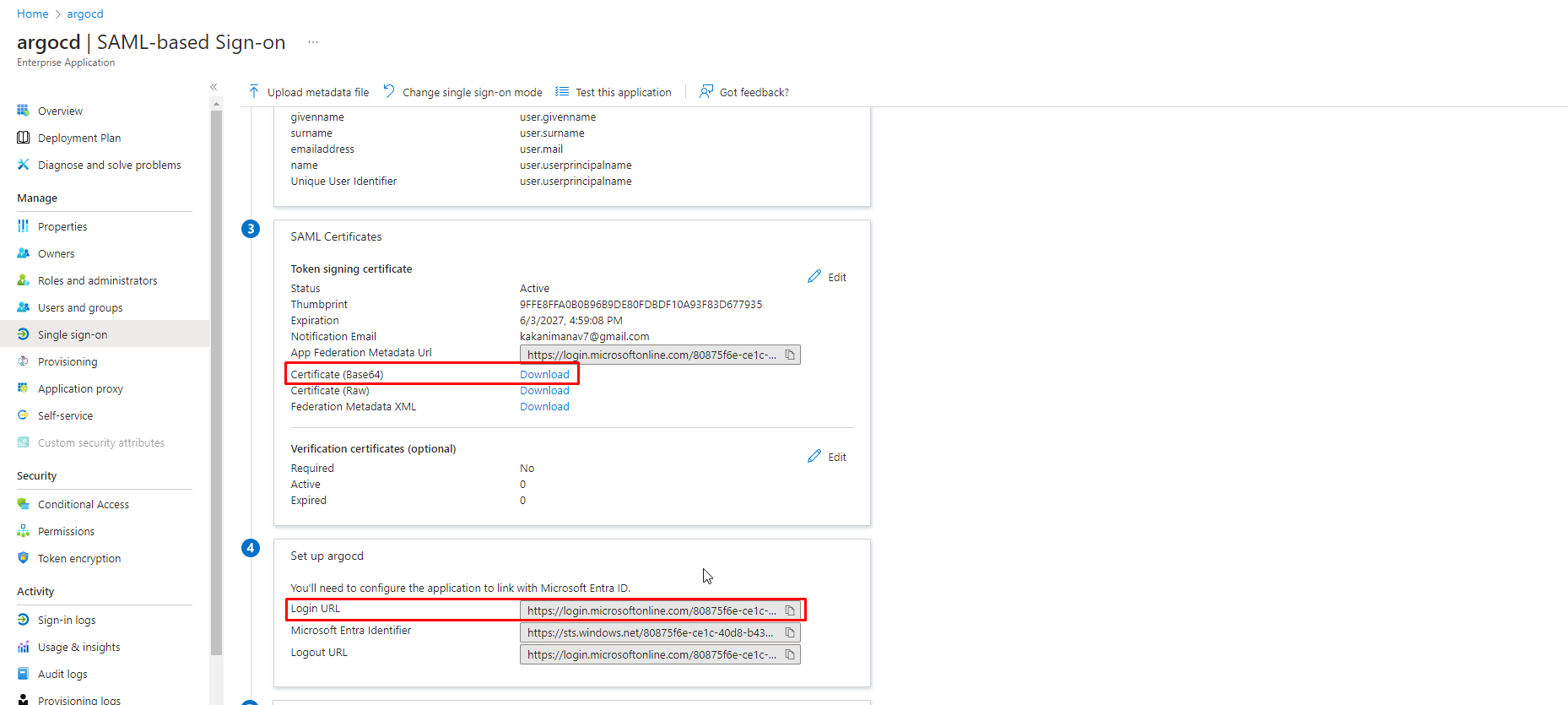

5. Download the SAML Signing Certificate (base 64) from the Single sign-on Menu:

• After download the certificate Encode it to the BASE 64

• EX: cat <your-file-name>(eg. Argocd.cer) | base64

• Keep a copy of the output and Login URL for configuration.

6. Configure Argo to use the new Entra ID Enterprise App:

• Edit argocd-cm and add the following dex.config to the data section:
